Acid Plant Database   February  9, 2022

Owner Itafos

Location Arraias Tocantins
Tocantins State

Brazil
Background 2017 - January 4 - Name changed to Itafos
Formerly MBAC Fertilizer Corporation www.mbacfert.com MBAC-Logo.gif (3136 bytes)

2008 – October - MBAC Fertilizer Corp. purchased 100% of the shares of Itafós Mineração Ltda
Website www.itafos.com
Plant -
Coordinates* 12° 55' 39" S, 46° 44' 32" W
Type of Plant Wet Sulphuric Acid (WSA)
Sulphur Burning
Gas Source Sulphur
Plant Capacity 600 MTPD
(210000 MTPA)
SA/DA SA
Emissions -
Status Operating
Year Built 2012
2017 - Q2 - Recommissioning of plant
Technology Haldor Topsoe
Contractor -
Remarks

Hydrogen Peroxide Tailgas scrubber
Power Generation = 10 MW
Acid Plant Estimated Cost = US$47.46 Million (incl. taxes and contingency)

Total Project Cost = US$ 175.31 million

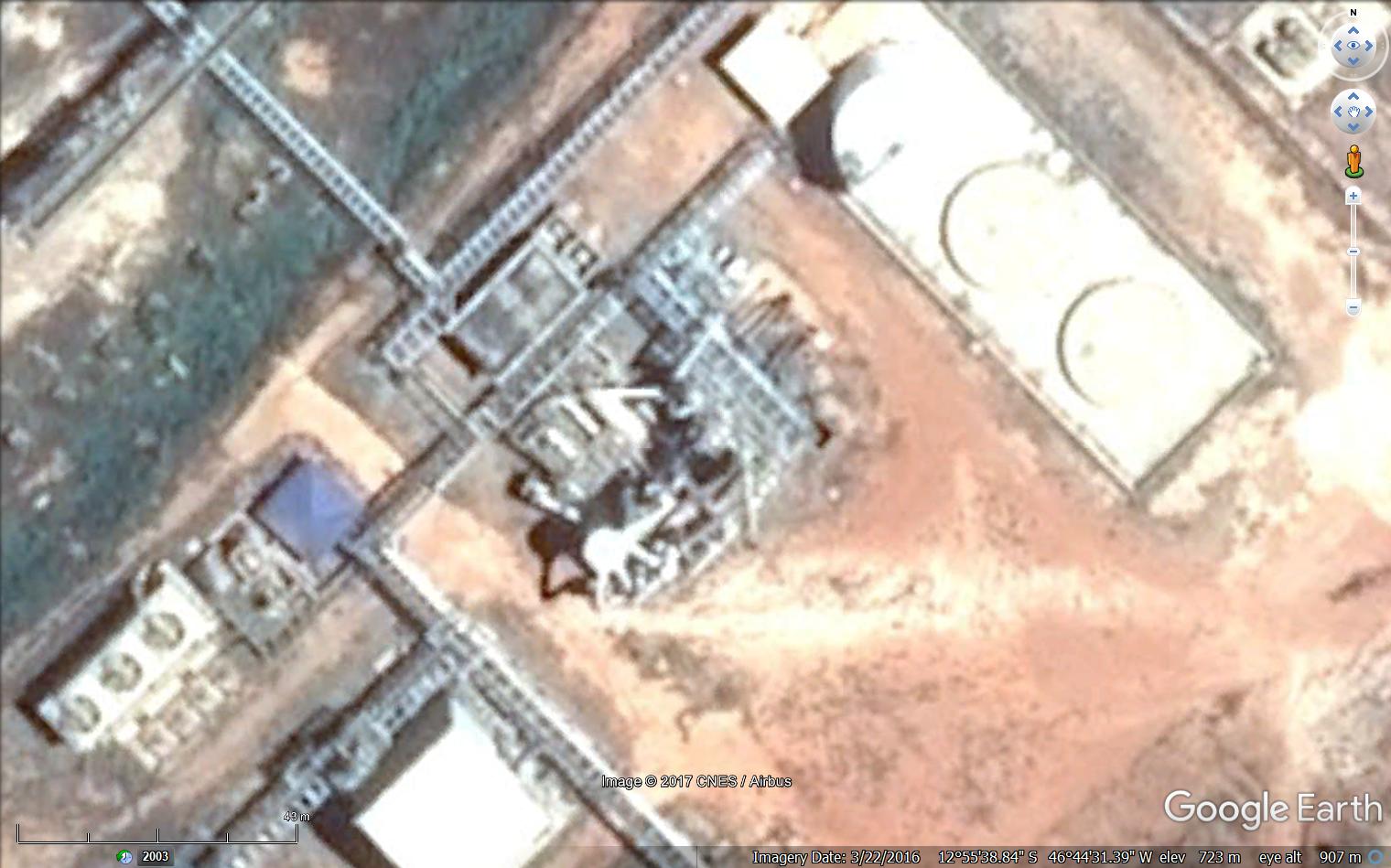

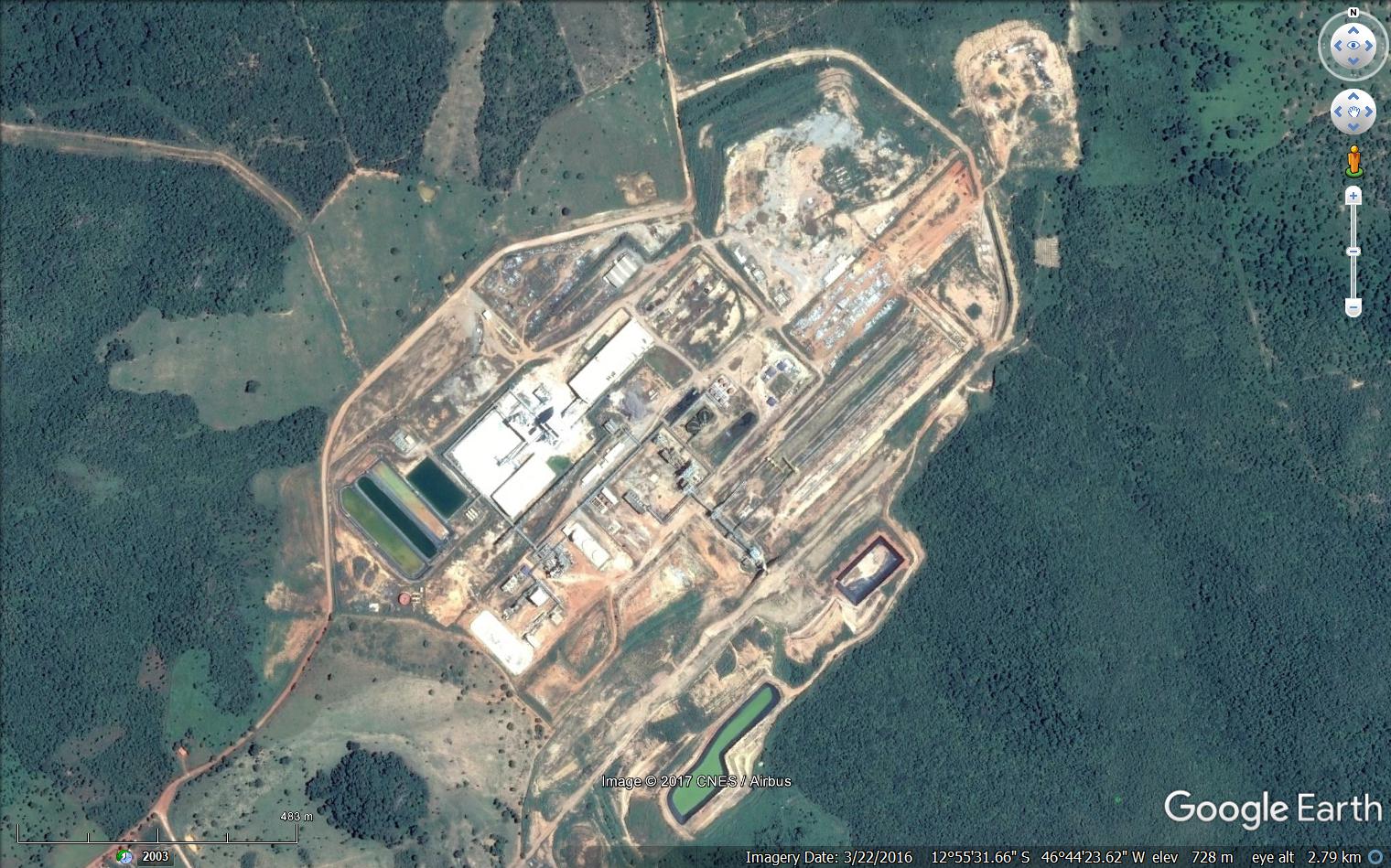

Pictures
General

Itafos is located in the municipality of Arraias Tocantins, in the southeast of Tocantins state, just a few kilometers away from Campos Belos, a town in the Goias state in central Brazil. The existing small-scale phosphate mining operation is based on high grade (+18% P2O5) mineralization. However, MBAC is currently focused on the development of a higher volume and much larger mining operation which is expected to be in place by second quarter of 2012. At full capacity, the proposed beneficiation plant is expected to generate 330 ktpa of phosphate rock concentrate at 28% P2O5. This phosphate concentrate will be used to produce 500 ktpa of SSP.

The Itafós Arraias SSP Project

MBAC is now focused on the development of a higher volume and much larger mining operation, which is expected to be in place by mid 2012. The Itafós Arraias SSP Project will include a new mine and mill facility, a sulphuric acid plant, an SSP plant and a granulation plant. At full capacity, the proposed beneficiation plant is expected to generate 330 ktpa of phosphate rock concentrate at 28% P2O5. This phosphate concentrate will be used to produce 500 ktpa of SSP. Beyond this proposed first phase of development, the Company is also actively investigating the potential for a second phase of development which could double production and potentially be in place as early as 2015.

References Definitive Feasibility Study, 60230-0000-32-002-002, October 26, 2010
News February 8, 2022 - Itafos Inc. announced today the resumption of sulfuric acid production and sales at Arraias. The recommissioning of the previously idled sulfuric acid plant was completed on schedule, within budget and with no reportable environmental releases or recordable incidents.  “We are pleased to have safely and successfully completed the recommissioning of the sulfuric acid plant at Arraias. While we continue to evaluate strategic alternatives for Arraias, we are opportunistically restarting the sulfuric acid plant to supply market demand and deliver positive margins,” said G. David Delaney, CEO of Itafos.  Arraias’ sulfuric acid plant has production capacity of 220kt per year. The Company expects to operate the sulfuric acid plant at Arraias with a base load capacity of approximately 10.5kt per month. Arraias has secured short-term sulfuric acid offtake agreements for its base load capacity with pricing linked to sulfur benchmarks. Based on market demand, the Company expects to opportunistically produce additional volumes of sulfuric acid to be sold on the spot market.  The remainder of the infrastructure associated with Arraias’ vertically integrated phosphate fertilizer business, including its mine, beneficiation plant, acidulation plant and granulation plant remain idled following best practices.

October 20, 2021
- Itafos Inc. announced today its decision to restart the sulfuric acid plant at Arraias. The recommissioning of the sulfuric acid plant at Arraias is expected to be completed over a four-month timeframe in order to commence sulfuric acid sales during Q1 2022.  “There continues to be significant demand for fertilizer products globally, including sulfuric acid in our Brazilian markets. Restarting our sulfuric acid plant at Arraias provides us with an opportunity to supply market demand at positive margins while we continue to evaluate strategic alternatives,” said G. David Delaney, CEO of Itafos.  Arraias’ sulfuric acid plant has production capacity of 220kt per year. The sulfuric acid plant, as well as the remainder of the infrastructure associated with Arraias’ vertically integrated phosphate fertilizer business, has been idled since Q4 2019. The remainder of Arraias’ key infrastructure, including its mine, beneficiation plant, acidulation plant and granulation plant are expected to remain idled following best practices.  The restart of the sulfuric acid plant at Arraias is independent of the previously announced stage-gate restart program launched during Q2 2020. The next deliverable related to the stage-gate restart program remains the completion of a revised geological model and long-term mine plan of the Domingos pit, which is expected to be completed during Q4 2021.




March 28, 2011
- MBAC Fertilizer Corp.
is pleased to announce that the “Licença de Instalação”, (the “LI” or “Construction License”) has been issued for the Itaf?s Arraias SSP Project (the “Project”) by Naturatins, the Tocantins State Environmental Agency (“Naturatins” or the “Agency”).  The issuance of the Construction License by Naturatins authorizes the Company to proceed with the construction of the mine, industrial complex and related facilities at the Project. The Company’s plan is to start clearing and land preparation in April 2011 with civil construction starting in July 2011.  The licensing process in Brazil consists of three stages and involves the issuance of a Preliminary License, a Construction License and an Operating License. The Preliminary License was granted upon evaluation of all the Project details and it confirms the Project is environmentally feasible. The Company received the Preliminary License for the Project in December 2010. The second stage is the awarding of the Construction License, which is granted after certain preconditions established on the issuance of the Preliminary License are fulfilled by the Company. MBAC has fulfilled these requirements and has received the approval to initiate the project construction. With receipt of the Construction License, the final outstanding license required is the Operating License, which is expected to be issued after the construction of the mine and all facilities is completed in accordance with the protocols established in the previous two licenses.

January 31, 2011 - MBAC Fertilizer Corp. is pleased to announce that it has received approval from Banco Itaú BBA S.A. ("Itaú BBA") for a US$110 million project financing facility in connection with the development of its large-scale single superphosphate (“SSP”) fertilizer project (the “Itafós Project” or the “Project”) located in the State of Tocantins, Brazil. The facility is expected to be provided through the on-lending program of the Brazilian development bank (Banco Nacional de Desenvolvimento Econômico e Social (BNDES)), which is the Brazilian development bank. Subject to BNDES approval and certain conditions Itaú BBA has indicated that they will underwrite US$110M of project financing facility. The actual disbursement is subject to certain terms and conditions, including those provided in the indicative term sheet received in September 2010 (see September 7, 2010 news release).  In addition, further to a mandate letter received in October 2010, the International Finance Corporation (“IFC”), a member of the World Bank Group, has provided indications to the Company that it would be willing to provide US$25 million of project financing and US$20 million of equity financing in connection with the Project. The IFC has recently completed a site visit whereby it conducted technical, environmental, social and financial and market due diligence. The Company expects to receive a definitive term sheet from the IFC upon completion of their due diligence, expected in March 2011.  The proceeds from these financings, along with the cash on hand, will be sufficient to fully fund the expected future capital expenditures for the Itafós Project through to the commencement of commercial production in mid-2012.  Antenor Silva, President and CEO of MBAC stated “We are extremely pleased to see the enthusiasm demonstrated for the Project by Itaú BBA. The support from both of our financial partners gives us great confidence that we will be in a position to proceed with the development of the Project once we receive the construction licence which is expected soon”.  MBAC continues to advance the development of the Itafós Project and has commenced detailed engineering as well as the procurement of long lead items, including the sulphuric acid plant.

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption


* Coordinates can be used to locate plant on Google Earth
