Acid Plant Database May 5, 2010

Owner AR Zinc S.A.I.F. and C.


Location Av. San Martín 1758
S2156ARR Fray L. Beltrán
Santa Fe - Argentina
Background Formerly
- a subsidiary of St. Joseph Lead Co.
- Sulfacid S.A.I.F. and C.

1963 - AR Zinc S.A. begins production
1995 - AR ZINC SA, incorporated in the total MINING GROUP SA, which also belongs to CIA. MINERA AGUILAR SA. producer of zinc and lead concentrates, both integrating their activities and pool their efforts to optimize the Group's operations as a whole and therefore getting a better position in domestic and international markets.
2005 - AR Zinc S.A. is incorporated in its entirety into Glencore International AG.

A subsidiary of Glencore owns 100% of the Aguilar/AR ZincGroup, the owner and operator of the Aguilar mine, the Palpala lead smelter and the AR Zinc smelter in Argentina

Website www.aguilar-arzinc.com
www.sulfacid-sa.com.ar
Plant Plant No. 1 Plant No. 2
Coordinates* 32° 47' 11" S, 60° 43' 4" W 32° 47' 12" S, 60° 43' 4" W
Type of Plant Metallurgical
Gas Source Zinc
1971 - New roaster installed
Plant Capacity 100 MTPD 100 MTPD
SA/DA - -
Emissions - -
Status Operating Operating
Year Built 1963 1970
Technology - -
Contractor - -
Remarks 44,000 MTPA Zinc metal
14,000 MTPA Lead metal

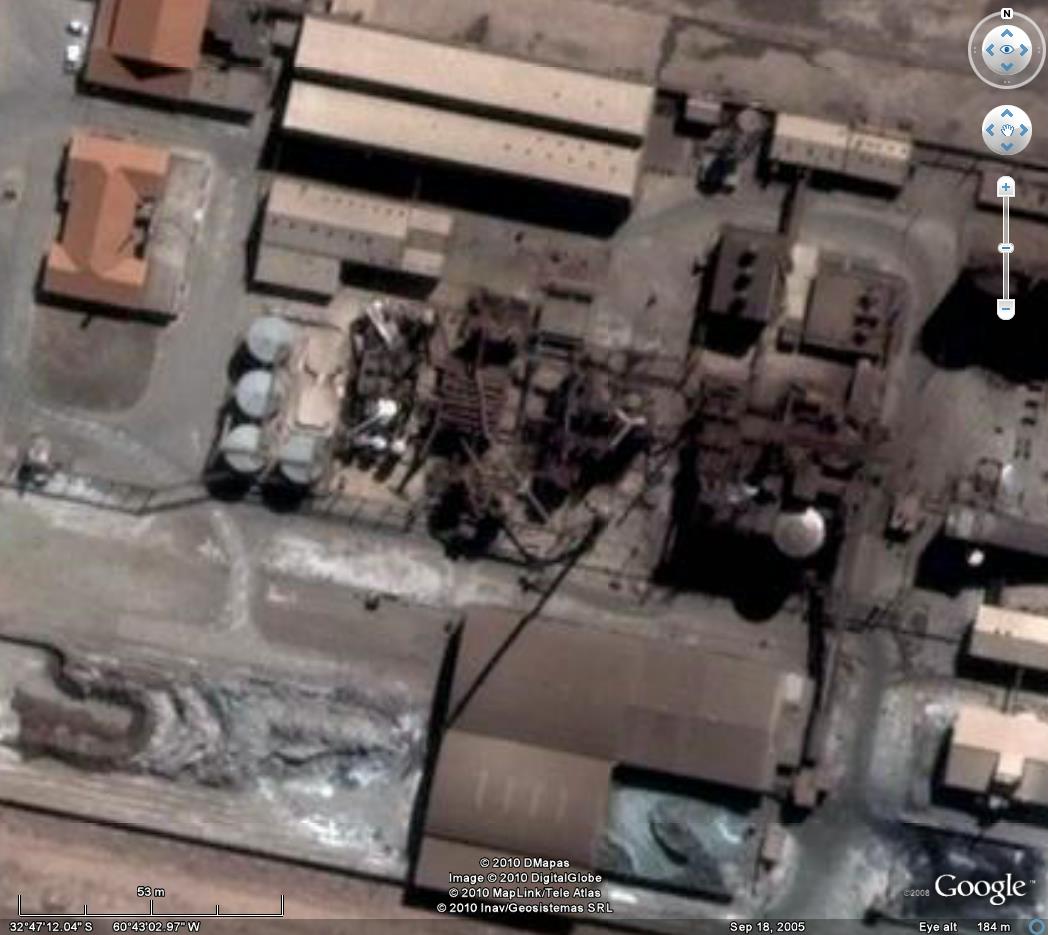

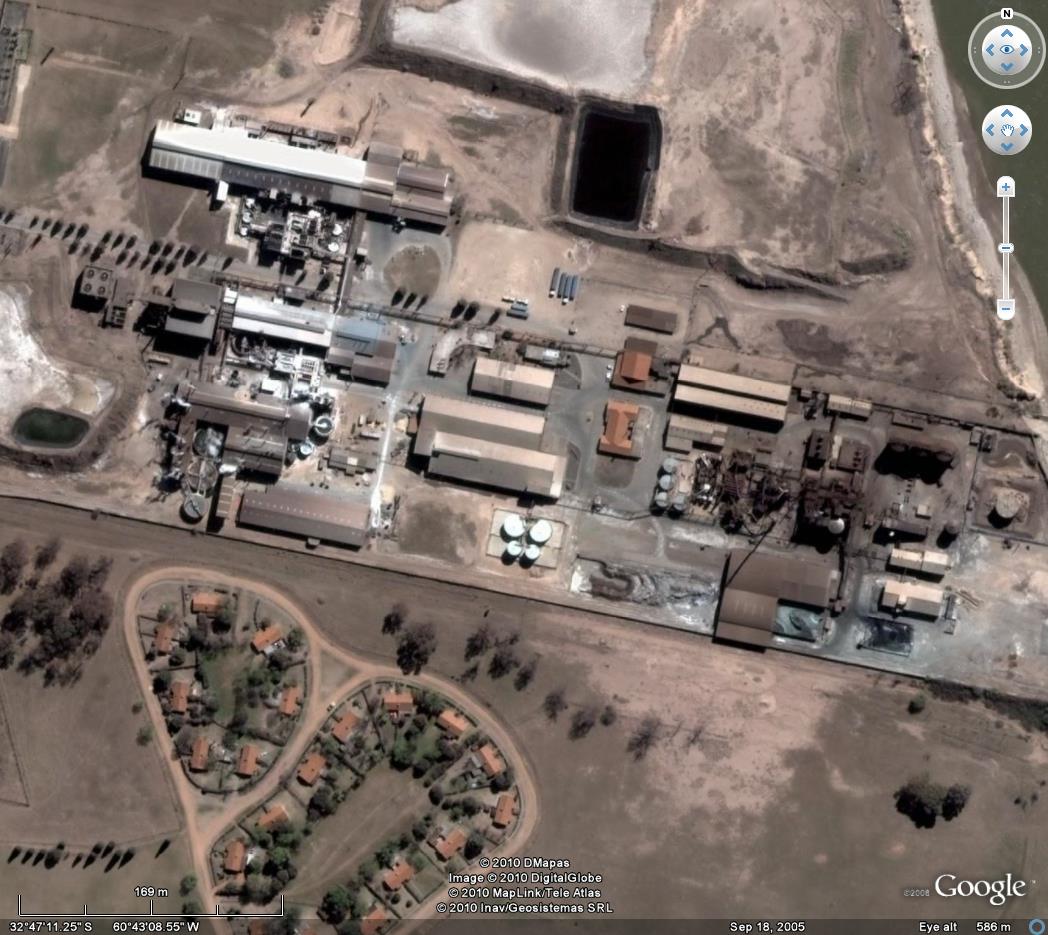

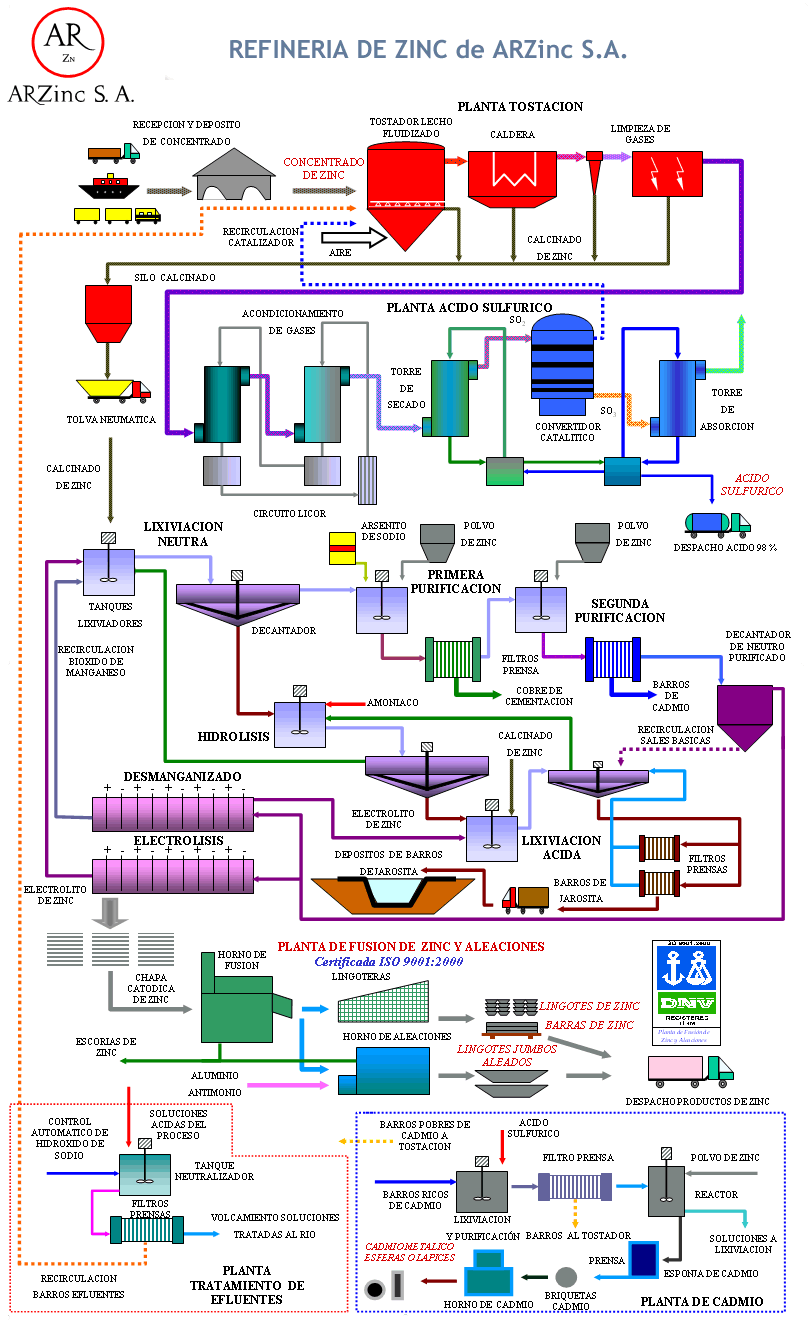

Pictures ARZinc-1.jpg (149901 bytes)   ARZinc-2.jpg (100844 bytes)  ARZinc-PFD.bmp (1074542 bytes)  ARZinc-3.bmp (188154 bytes)   ARZinc-4.bmp (188154 bytes)
General Aguilar is the operator of the Aguilar mine located in the north west of Argentina. Lead concentrates produced from the mine are treated in Aguilar's own Palpala smelter and the resulting metal is sold domestically. The zinc concentrate is treated at the AR Zinc smelter, located in Santa Fe province, Central Argentina. The zinc metal produced is shipped to consumers primarily in Argentina and Brazil. AR Zinc is also a major supplier of sulphuric acid. The group was acquired by a Glencore subsidiary in 2005.

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption


* Coordinates can be used to locate plant on Google Earth
