Acid Plant Database May 13, 2015

Owner State Company for Phosphates

State Company for Phosphates logo.jpg (8151 bytes)

Location -
Background Iraq Ministry of Industry and Minerals
Website www.scpqiraq.com
Plant

Al-Qaim Complex Plant

Plant No. 1 Plant No. 2 Plant No. 3
Coordinates* 34° 19' 22" N, 41° 10' 39" E 34° 19' 23" N, 41° 10' 40" E 34° 19' 24" N, 41° 10' 41" E
Type of Plant Sulphur Burning Sulphur Burning Sulphur Burning
Gas Source Elemental Sulphur Elemental Sulphur Elemental Sulphur
Plant Capacity 500,000 STPA 500,000 STPA 500,000 STPA
SA/DA - - -
Status Operating Operating Operating
Year Built 1985 1985 1985
Technology Mechim Mechim Mechim
Contractor Sybetra Sybetra Sybetra
Remarks - - -

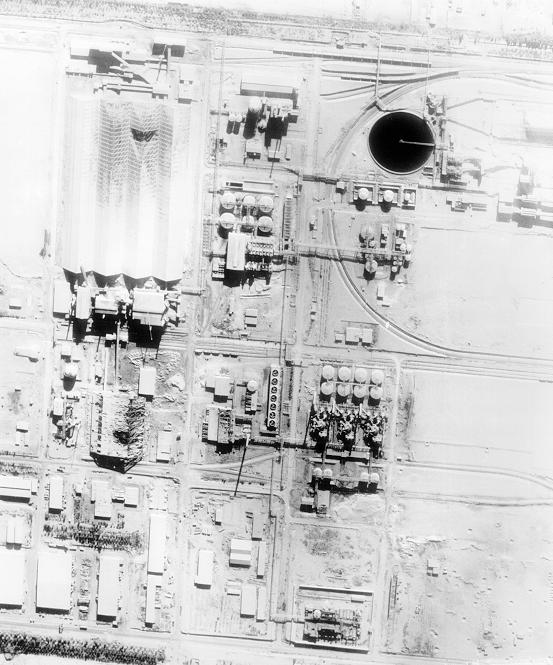

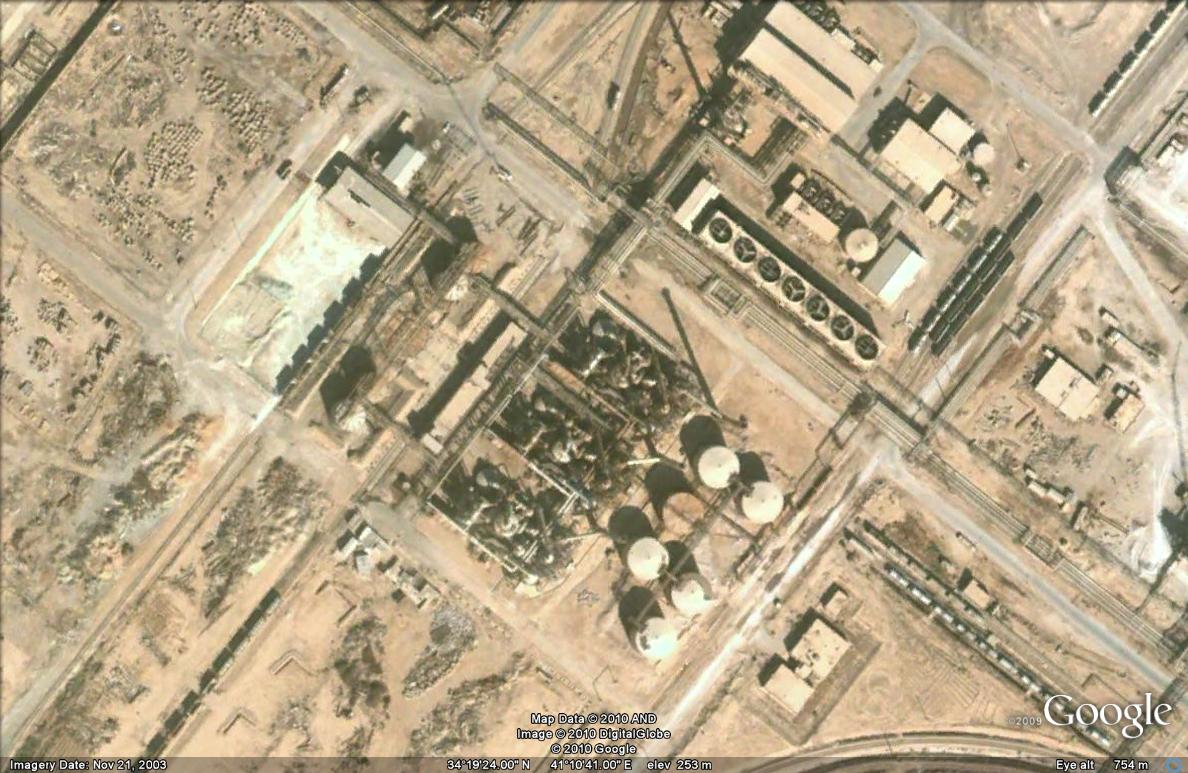

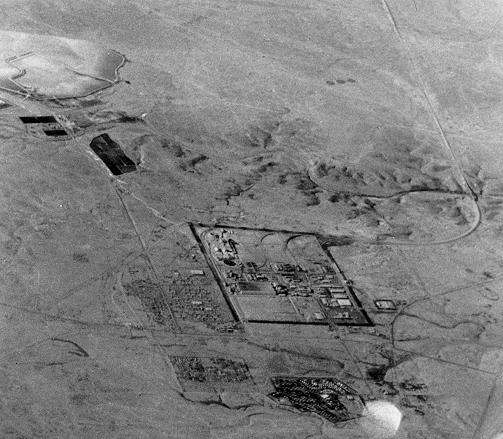

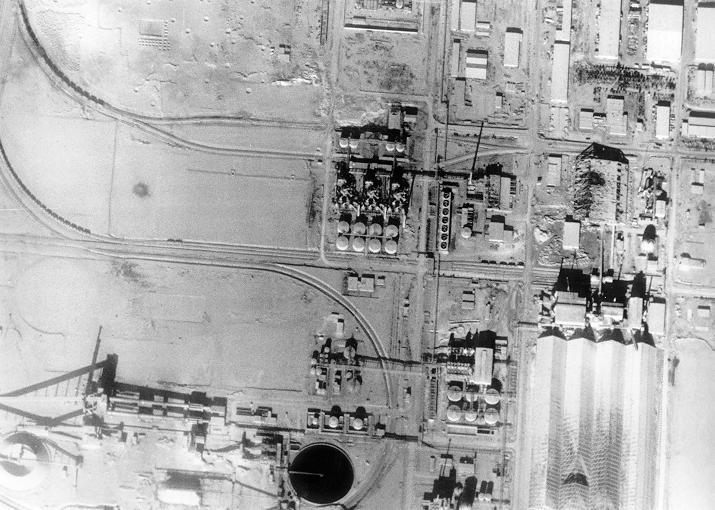

Pictures State-Company-Phosphates-1.jpg (174221 bytes)  State-Company-Phosphates-2.jpg (72984 bytes)  State-Company-Phosphates-3.jpg (47833 bytes)  State-Company-Phosphates-4.jpg (80412 bytes)

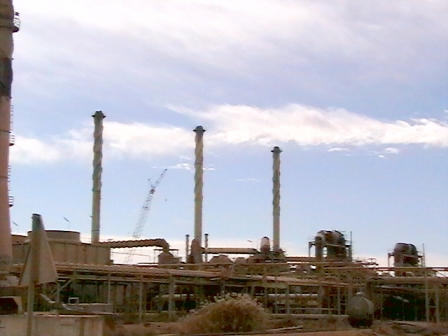

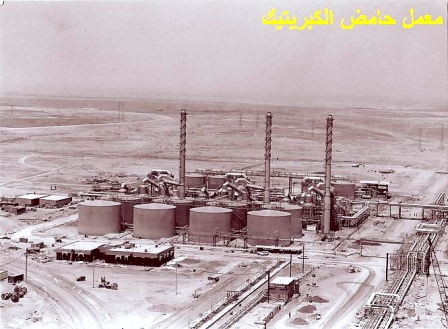

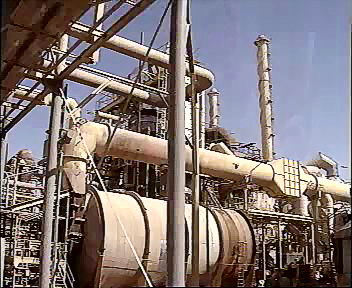

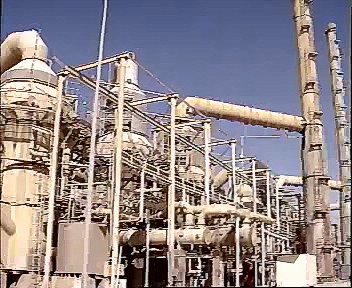

State Company for Phosphates 2.jpg (141779 bytes)  State Company for Phosphates 3.jpg (109325 bytes)  State Company for Phosphates 4.jpg (200770 bytes)  State Company for Phosphates 5.jpg (200738 bytes)

General The Chemical complex was established in 1976 by a Belgian company "Sybetra" as a general contractor with a capital of 350 million Iraqi dinars and started production in 1985.  The Complex consists of a set of integrated and interrelated plants to produce chemical fertilizers as a final product.  These plants are (ore beneficiation plant, sulfuric acid plant, phosphoric acid plant, the utilities plant, fertilizers plants, ammonia plant, fluorine salts plant, and materials handling plant). The main objective of the company is to carry out the detailed exploration and investigations of phosphate deposits as well as production and transfer of phosphate ores for beneficiation and production of phosphate fertilizers, compound fertilizers and various products and by-products including complementary industries for the production of phosphatic compounds.

Akashat phosphate mine is located in the province of Anbar in the western desert at Akashat region sites between Alqaim district and Rutba district about 150 km southwest ,The main task of the mine is limited by the extraction of the phosphate rocks ,crushing , loading and conveying the raw materials by rail wagons to the chemical Complex in Allqaim .Akashat phosphate mine project is an integrated production unit owns their workshops ,vehicles and warehouses as well as other requirements necessary for production operations. Akashat is an open pit mine of design capacity reaches 3.4 million ton per year with 12 hours work a day the mine capacity can be duplicated according to working hours.

References -
News -

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption


* Coordinates can be used to locate plant on Google Earth
