Irving Oil Limited

Acid Plant Database October 6, 2011

Owner	Irving Oil Limited
Location	Saint John, New Brunswick Canada
Background	-
Website	www.irvingoil.com
Plant	Plant No. 1	Plant No. 2
Coordinates*	45° 16' 45" N, 66° 0' 53" W	-
Type of Plant	Acid Regeneration Wet-Gas Sulphuric Acid (WSA)	Acid Regeneration Wet-Gas Sulphuric Acid (WSA)
Gas Source	Alkylation Spent Acid (~50%) Hydrogen Sulphide (H₂S) – Amine regenerator gas (~50%)	Claus Tail Gas
Plant Capacity	278 MTPD	29.2 MTPD Gas Flow: 19,500 Nm³/h Gas Composition: 0.35% SO₂,1.0% H₂S, 35.0% H₂O
SA/DA	SA	SA
Emissions	SO₂: 200 ppm	SO₂: 100 ppm
Status	-	-
Year Built	-	-
Technology	Haldor Topsøe	Haldor Topsøe
Contractor	-	-
Remarks	Power Consumption: 80 kWh/MT spent acid Steam Production: 14 t/h, 40 barg, 315°C Cooling Water: 10 m³/MT product acid	Product Acid Concentation: 94% Power Consumption: 100 kWh/h Fuel Consumption: 275 Mcal/h

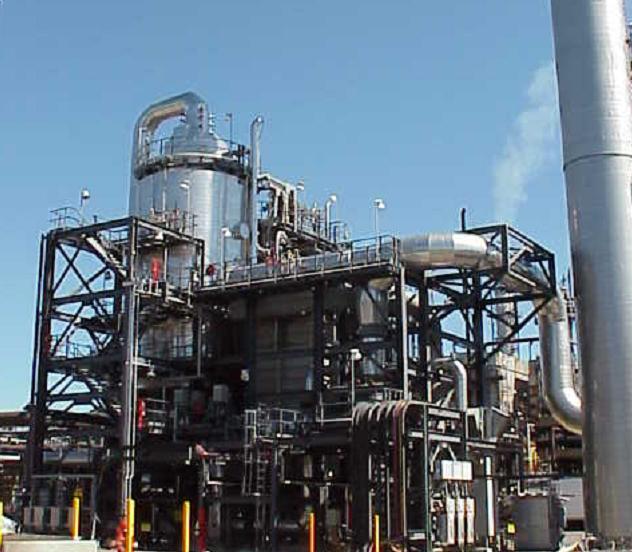

Pictures

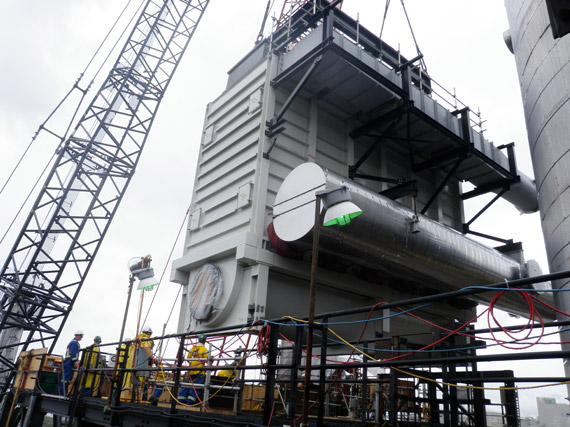

General	Founded in 1924 by K.C. Irving, Irving Oil is a family-owned and privately-held regional energy processing, transporting, and marketing company headquartered in Saint John, New Brunswick, Canada. Lorneville Fall 2011 - The waste spent acid condenser project for Irving Oil in Saint John, New Brunswick involved the fabrication and Installation of the Haldor Topsoe WSA Condenser as well as all of its associated Ductwork. Lorneville’s timeline for this project was very aggressive due to the rapidly deteriorating condition of the existing unit and the urgent need for its replacement. Despite numerous challenges associated with technical nature of the project and timelines, Lorneville’s work was a success on all fronts: safety, quality, schedule, and budget.
References	www.lorneville.com/projects/
News	October 3, 2011 - WorkSafeNB is investigating an incident at the Irving Oil refinery last week where some workers were exposed to acid fumes. The incident happened last Wednesday at the refinery's sulfuric acid regeneration plant, which was shut down for maintenance. Dino Scichilone, the assistant regional director for WorkSafeNB, said a vacuum truck was pumping water out of a concrete pit at about 3 p.m. when some workers in the area smelled some fumes. Scichilone said the area was evacuated and 35 workers were sent to the onsite health unit. He said three of them required first aid treatment, including oxygen. However, none of the workers were treated in hospital. But Scichilone said it appears some residual acid fumes escaped from the pump truck's tank. Carolyn Van der Veen, an Irving Oil Ltd. official, said in an email that two employees in the direct vicinity of the truck "noticed some discomfort." She said "all employees have been cleared with no adverse effects reported." Van der Veen said "mitigation steps have been taken" to avoid another incident but it's unclear what those include.

MTPD - Metric Tonne per Day STPD - Short Ton per Day
MTPA - Metric Tonne per Annum STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption

* Coordinates can be used to locate plant on Google Earth
