Acid Plant Database October 9, 2010
Owner | Molymex S.A. de C.V. | |
Location | Cumpas, Sonora |
|
Background | - | |
Website | www.molymet.com | |
Plant | - | |
Coordinates* | 30° 0' 40.5" N, 109° 46' 57.5" W | |
Type of Plant |
Metallurgical Wet Gas Sulphuric Acid (WSA) |
|
Gas Source | Molybdenum (MoS2) multiple hearth roasting furnace | |
Plant Capacity | 65 MTPD Gas Flow: 10,000 to 20,000 Nm3/h SO2: 2.0 to 4.5% |
|
SA/DA | 2 SA Conversion: 99% |
|
Emissions | SO2:
0.05% vol SO3: 10 ppmv |
|
Status | Operating | |
Year Built | 2001 | |
Technology | Haldor Topsøe | |
Contractor | - | |
Remarks |
Product Acid Concentration: 97.5% H2SO4 Power Consumption: 90 kWh/h Cooling Water: 39 m3/h |
|

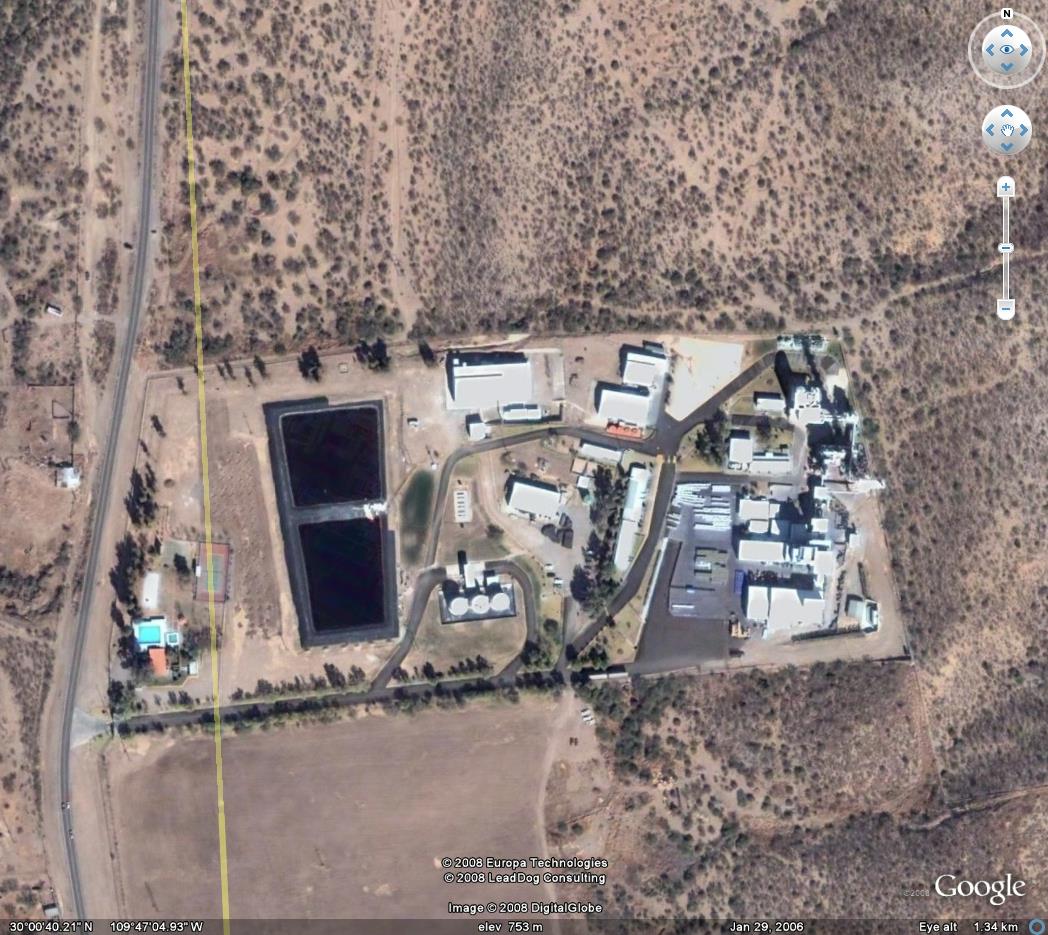

Pictures | ||
General | This site roast molybdenum concentrates, mainly from Mexican or North American origin, to produce molybdenum oxide. The current installed capacity is 22 million pounds of molybdenum contained in concentrates per year, approximately 18,500 Metric Tons of concentrates. Output gases from the roasting process are cleaned by a scrubbing plant and then fed to a sulfuric acid plant. There the gases are converted to sulfuric acid, a product that is sold in the domestic Mexican market. |
|
References | Laursen, J.K., Recovery of Sulphur in Off-Gases from Roasting of Molybdenum Sulphide, Sulfide Smelting 2002, pp. 143-153 | |
News | - |
MTPD - Metric Tonne per Day
STPD - Short Ton per Day
MTPA - Metric Tonne per Annum STPA - Short Ton per
Annum
SA - Single Absorption
DA - Double Absorption
* Coordinates can be used to
locate plant on Google Earth
