Acid Plant Database May 5, 2010
Owner | Ryazan Refining Company CJSC | |||
Location | Ryazan Russia |
|||
Background |
1960 - Operations began |
|||
Website | ||||
Plant | - | - | Plant A | Plant B |

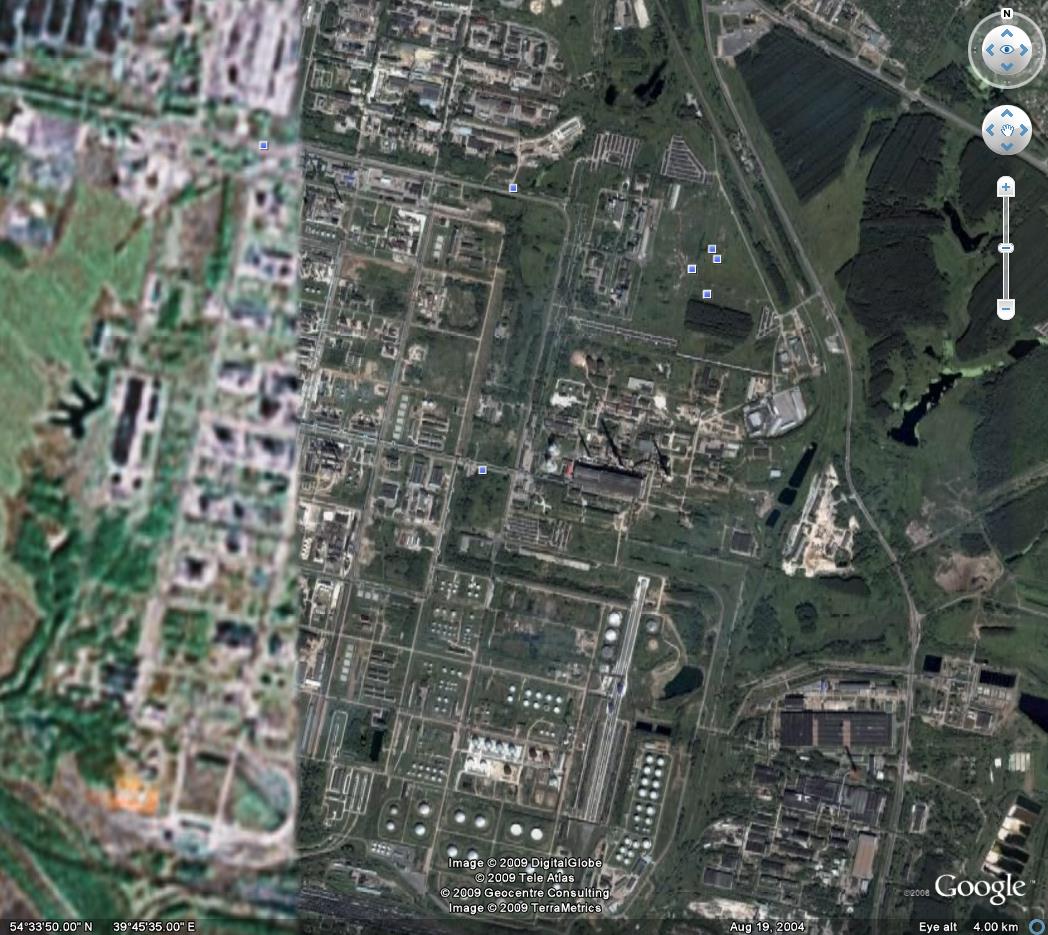

Coordinates* | 54° 33' 50" N, 39° 45' 35" E (Site) | |||
Type of Plant | Wet-Gas Sulphuric Acid (WSA) | Wet-Gas Sulphuric Acid (WSA) |
Wet-Gas Sulphuric Acid (WSA) Acid Regeneration |
Wet-Gas Sulphuric Acid (WSA) |
Gas Source | Hydrogen Sulphide (H2S) | Hydrogen Sulphide (H2S) |
Alkylation Spent Acid Hydrogen Sulphide (H2S) |
Hydrogen Sulphide (H2S) Sour Water Stripper (SWS) Gas (53% NH3, 47% H2S) |
Plant Capacity |
154 MTPD |
154
MTPD 31,000 Nm3/h |
330 MTPD | 400 MTPD |
SA/DA | SA | SA | SA | SA |
Emissions | - | - | SO2: 250 ppm | SO2: 250 ppm |
Status | Operating | Operating | Operating | Operating |
Year Built | 1994 | 1994 | 2005 | 2006 |
Technology | Haldor Topsøe | Haldor Topsøe | Haldor Topsøe | Haldor Topsøe |
Contractor | - | - | - | - |
Remarks | Steam Production: 5.2 t/h | Steam Production: 5.2 t/h |
Steam Production: 25 t/h, 41 barg |
Steam Production: 45
t/h, 41 barg CW Consumption: 195 m3/h |
Pictures | ||||
General | TNK-BP is a leading Russian oil company. Although based in Moscow, TNK-BP’s major producing assets are located in West Siberia, the Volga-Urals and East Siberia. TNK-BP owns and operates five refineries (four in Russia and one in Ukraine) and has a retail network of approximately 1,100 sites spread across Central Russia and Ukraine, with a particularly strong position in the Moscow market. | |||
References | - | |||
News | December 11, 2006 - TNK-BP announced today successful completion of a major upgrade project at the Ryazan oil refining company (RNPK) with the inauguration of the alkylation and isomerization units. A comprehensive modernization programme at the Ryazan refinery originally began in 2000. Its major elements include commissioning of the fluid catalytic cracker; vacuum gasoil (VGO) hydrotreater; a hydrogen unit; sulphuric acid units; and the alkylation and isomerization units. The project positions the Ryazan refinery among the best in Russia. The benefits achieved relate to improved yields of higher value products and their better quality as well as significant environmental improvements. |
MTPD - Metric Tonne per Day
STPD - Short Ton per Day
MTPA - Metric Tonne per Annum STPA - Short Ton per
Annum
SA - Single Absorption
DA - Double Absorption
* Coordinates can be used to
locate plant on Google Earth
