Acid Plant Database  June 25, 2014

Owner

Votorantim Metais


Location

Rodovia BR 267 - Km 119
Igrejinha - Juiz de Fora - MG - CEP 36091-970
Brazil

Background

Formerly
- Companhia Paraibuna de Metais

Website www.vmetais.com.br
Plant

Juiz de Fora Unit

Zinc Plant Lead Plant
Coordinates* 21° 42' 16" S, 43° 28' 42" W -
Type of Plant Metallurgical Metallurgical
Wet-Gas Sulphuric Acid (WSA)
Gas Source Zinc
Lurgi Fluid Bed Roaster (Area = 46.4 m2)
Lead
Top Submerged Lance (TSL)
Batch Process
Hot Gas Cleaning Waste Heat Boiler - Cyclones (2) - Hot ESP (2) -
Wet Gas Cleaning Quench - ? - WESP (2x2) - Fluorine Tower -
Plant Capacity 1980: 278 MTPD
1988: 315 MTPD
1999: 347 MTPD
240 MTPD
33,000 Nm3/h, 0.5-6.8% SO2
SA/DA 2/2 DA SA
Emissions -

SO2: 2 kg/MT
Acid Mist: 0.075 kg/MT
Opacity: <10%

Status Operating -
Year Built 1980 2012
Technology Outotec (Lurgi) Haldor Topsoe
Contractor - -
Remarks Copper Sulphate: 3000 MTPA
Liquid SO2: 35 MTPD

1988 - Liquid SO2 plant installed - Capacity 20 t/d (Sulzer)
1999 - Liquid SO2 plant installed - Capacity 35 t/d (Lurgi)
        - Wet gas cleaning system replaced
2001 - Hydrogen peroxide scrubber installed after final absorber

Smelting: 18,000 Nm3/h, 12.6% SO2, 6.0 h
Reduction: 21,000 Nm3/h, 0.23% SO2, 1 h
Slag Discharge: 7,600 Nm3/h, 0% SO2, 0.5 h

Cooling Water: 80 m3/h
Power: 525 kWh/h

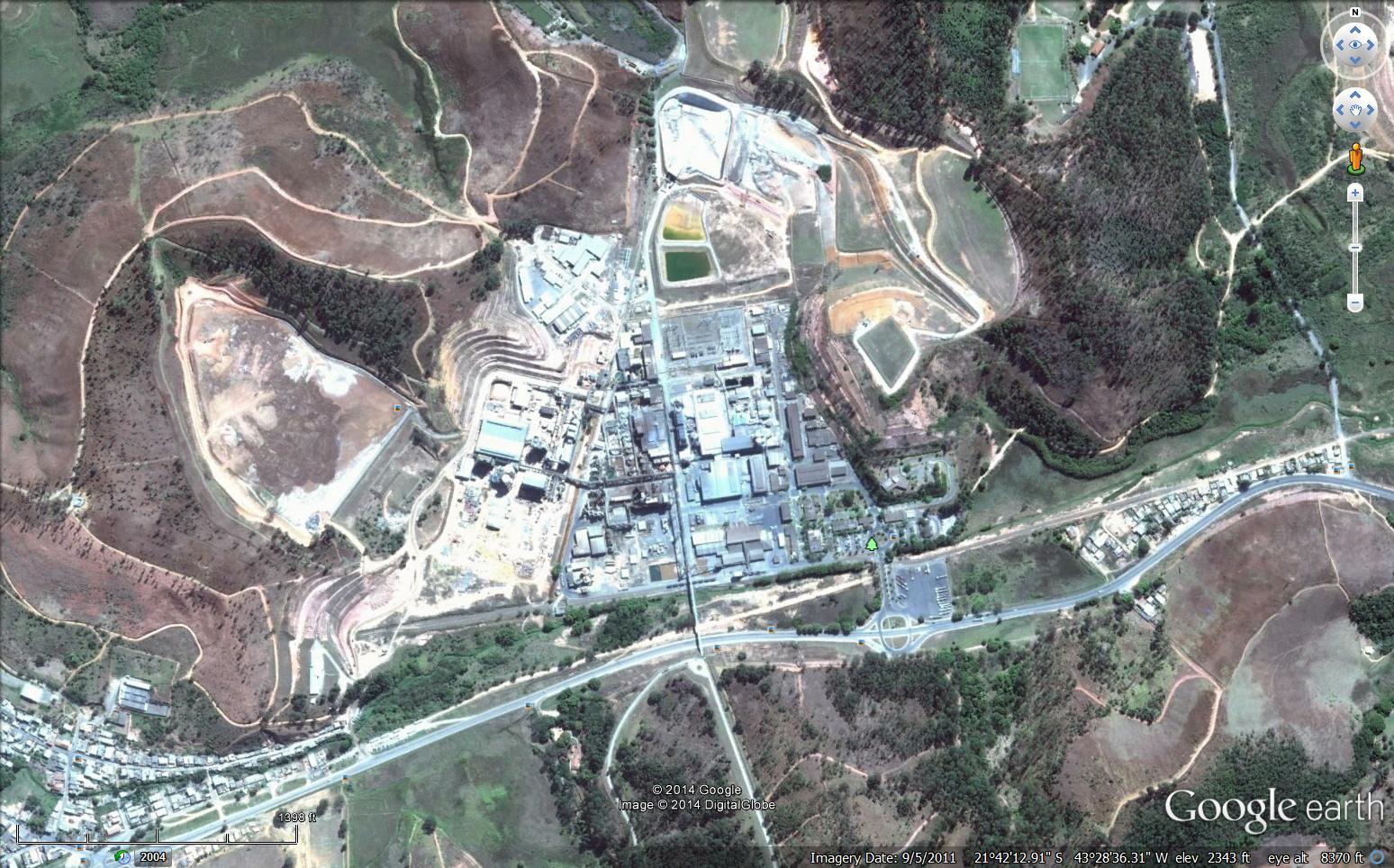

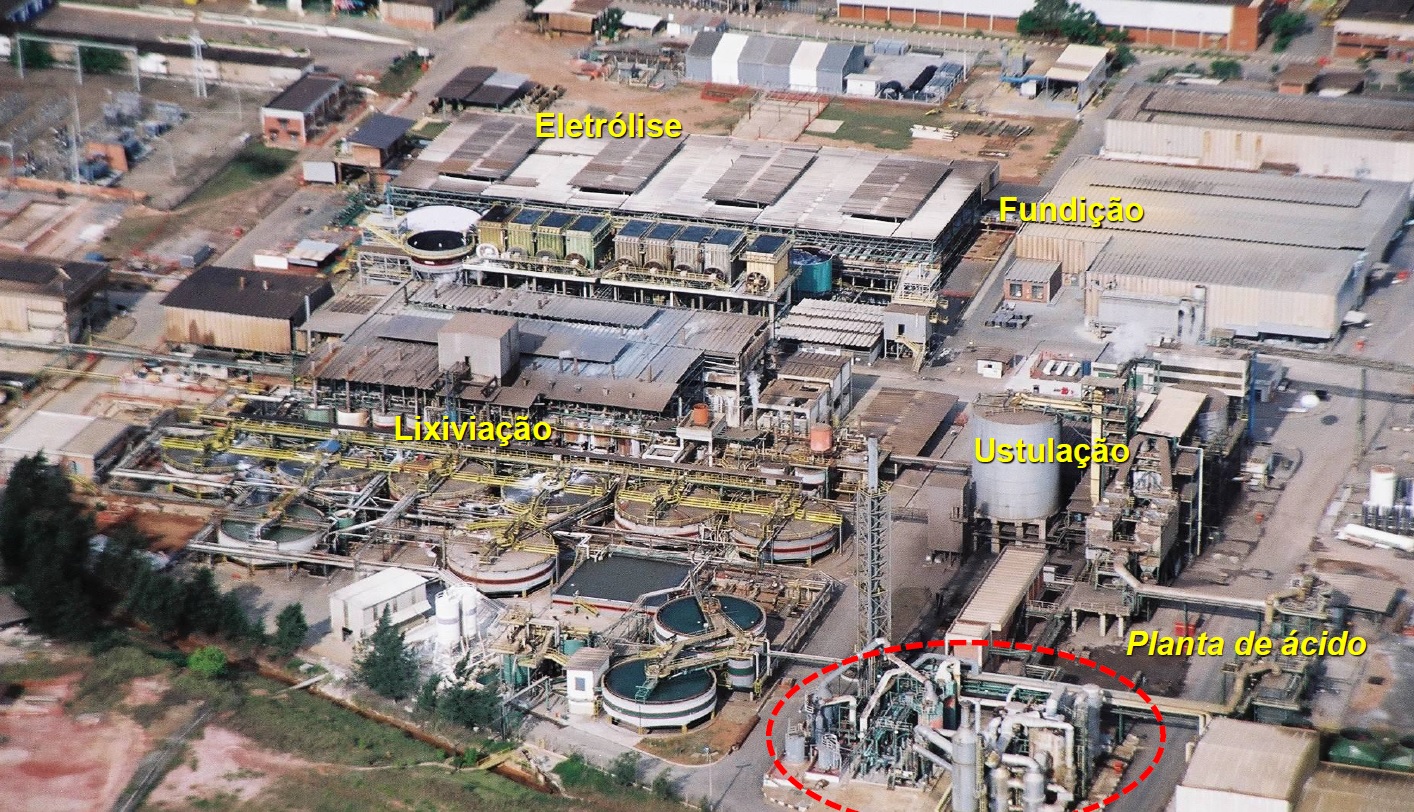

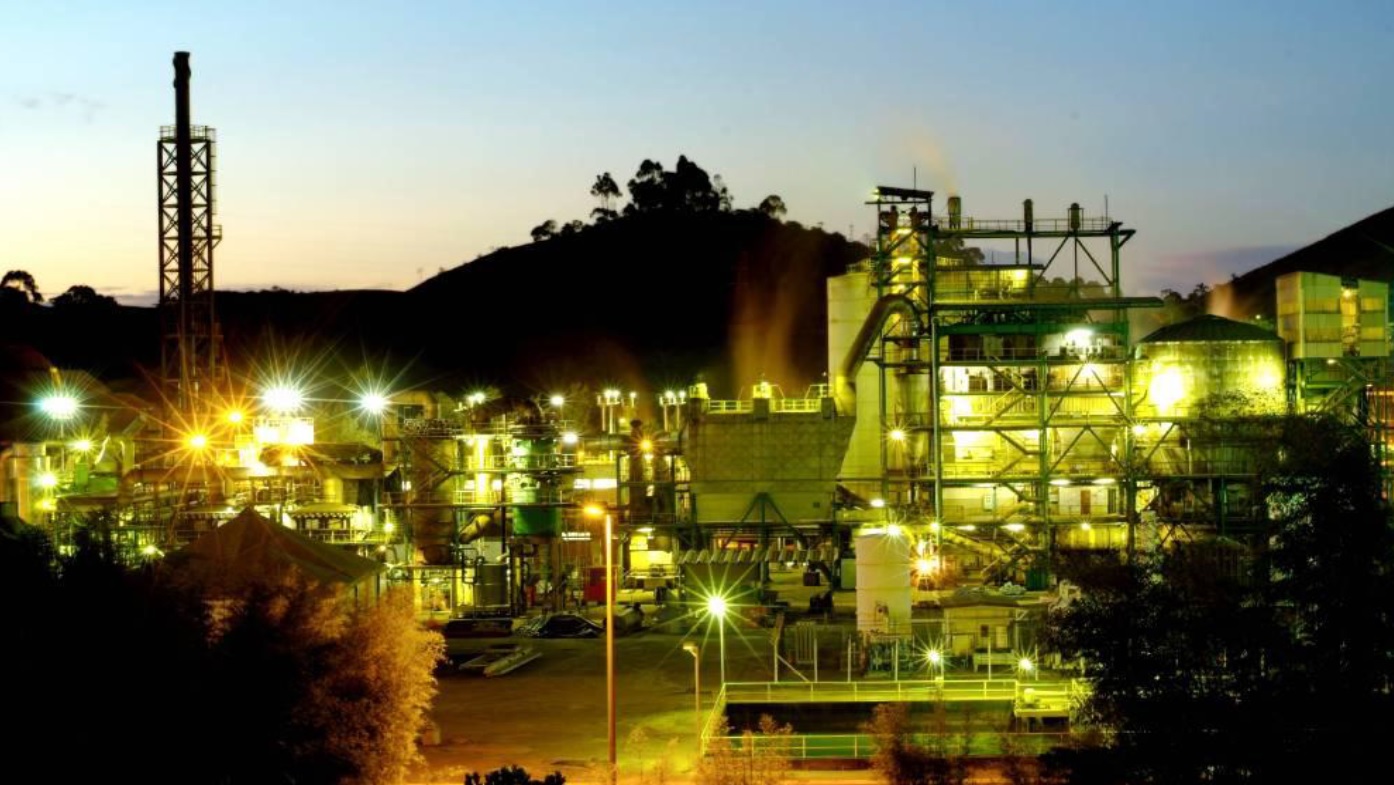

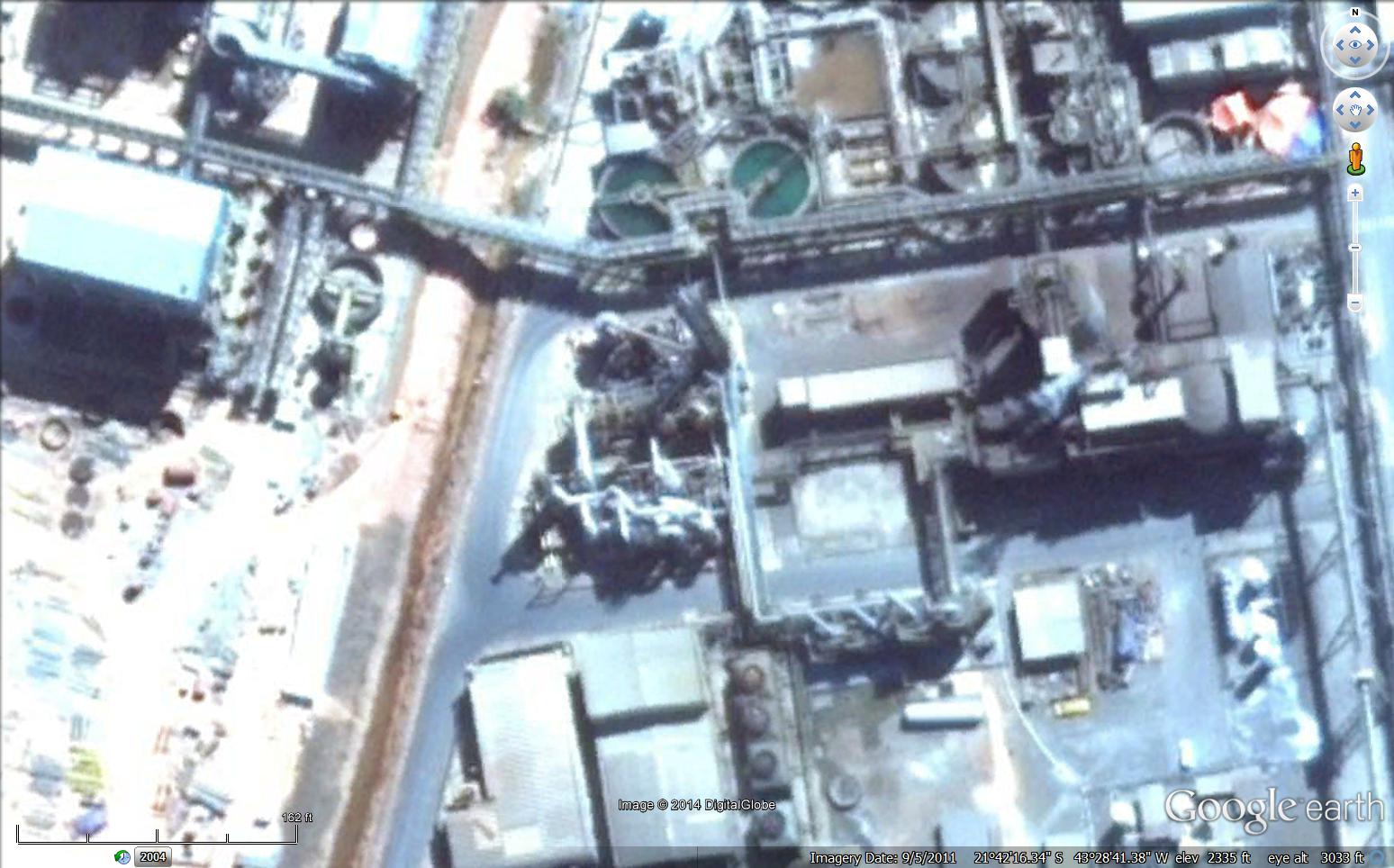

Pictures
General Annual production of zinc = 98,000 tons
References -
News

August 16, 2007 - Ausmelt Limited (AET) has signed a basic design engineering contract and technology licensing agreement with Votorantim Metais Zinco S.A. for a lead smelter to be constructed in Juiz de Fora in Brazil.  Basic design work will start immediately. The smelter will be designed to produce around 75,000 tonnes a year of lead bullion from a combination of lead concentrates and lead scrap, mainly from recycled batteries.

MTPD - Metric Tonne per Day           STPD - Short Ton per Day
MTPA - Metric Tonne per Annum      STPA - Short Ton per Annum
SA - Single Absorption
DA - Double Absorption


* Coordinates can be used to locate plant on Google Earth
