Materials of Construction - FRP - Inspection
September 23, 2001

Introduction Associated Links

Introduction

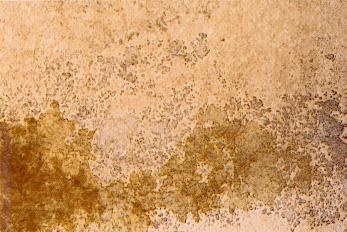

Delamination

Separation of layers.

Cause

  • Poor glass saturation.
  • Dirty surface.
  • Glass content too high.
  • Failure to remove air-inhibition coat before adding layer.

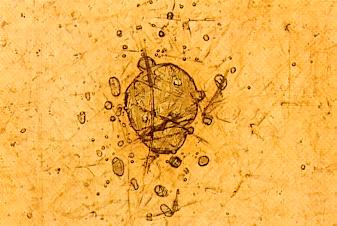

Fisheye

Small globular mass that has not blended into surrounding material.   Particularly evident in transparent or translucent materials.

Cause

  • Dirty surface.
  • Foreign matter falling on resin.

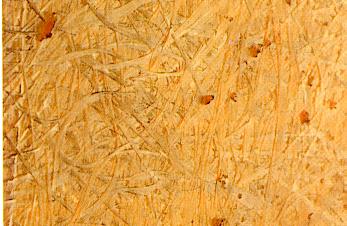

Dry Spots

Area of reinforcement that was not wetted with resin.  Usually at edge of laminate.  Dry spots usually associated with molding operations.

Cause

  • Not enough resin used.

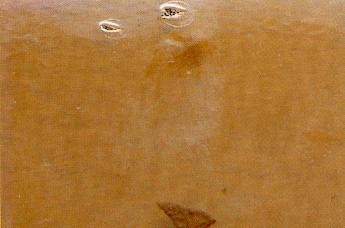

Pimple

Small sharp or conical pimple-like elevation on surface.  Pimples are usually resin-rich.

Cause

  • Dipped resin or small bubble.
  • Working on area after resin has cured.

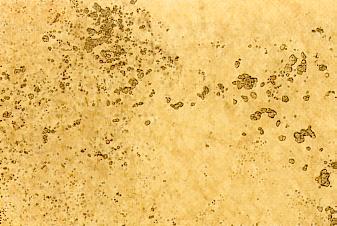

Pit or Pinhole

Small regular or irregular crater on surface, usually with nearly equal width and depth.

Cause

  • Air bubbles that rise to surface, which cures before smoothing out.

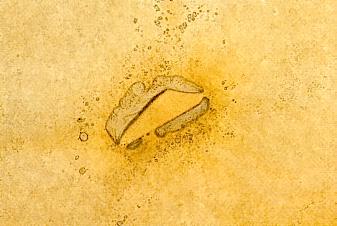

Resin Pocket

Accumulation of excess resin in a small localized area..

Cause

  • Improper layup.  Glass separates and void fills with resin.

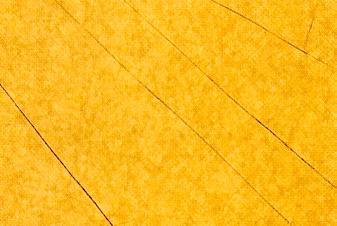

Scratch

Shallow mark, groove, furrow or channel.

Cause

  • Improper handling or storage.

Worm Holes

Elongated void in surface or covered by thin film of cured resin

Cause

  • Usually found in small-diameter pipe where cure is from the outside and progresses towards the mandrel.

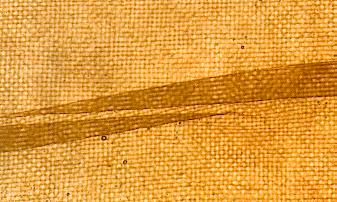

Wrinkle

Crease or wrinkle-like surface imperfection in one or more plies of molded-in reinforcement.

Cause

  • Improper layup.
  • Too rapid cure.
  • Use of old resin
  • Fold in release film on the mold.
